Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | SRS-75-24 |
| Configuration | Enclosed |
| Depth | 3.29" (83.5mm) |
| Efficiency | 92 % |
| Input Voltage | 110 VAC |
| Length | 7.2" (183mm) |
| Life | 200000 h |
| Line Regulation | ±0.5 % |
| Load Regulation | ±1 % |
| Maximum Operating Temperature | 158 F (70 C) |
| Minimum Operating Temperature | -4 F (-20 C) |
| Mounting Type | Panel Mount |
| Noise Rating | 480 mV |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 3.2 A |
| Output Power | 76.8 W |
| Output Voltage | 24 VDC |
| Package Type | Enclosed |
| Power Rating | 504 W |
| Primary Type | AC-DC |
| Shop By | Factory Choice |
| Standards | UL |
| Type | Commercial |
| UPC Code | 5056279075046 |
| Width | 4.72" (120mm) |
Overview

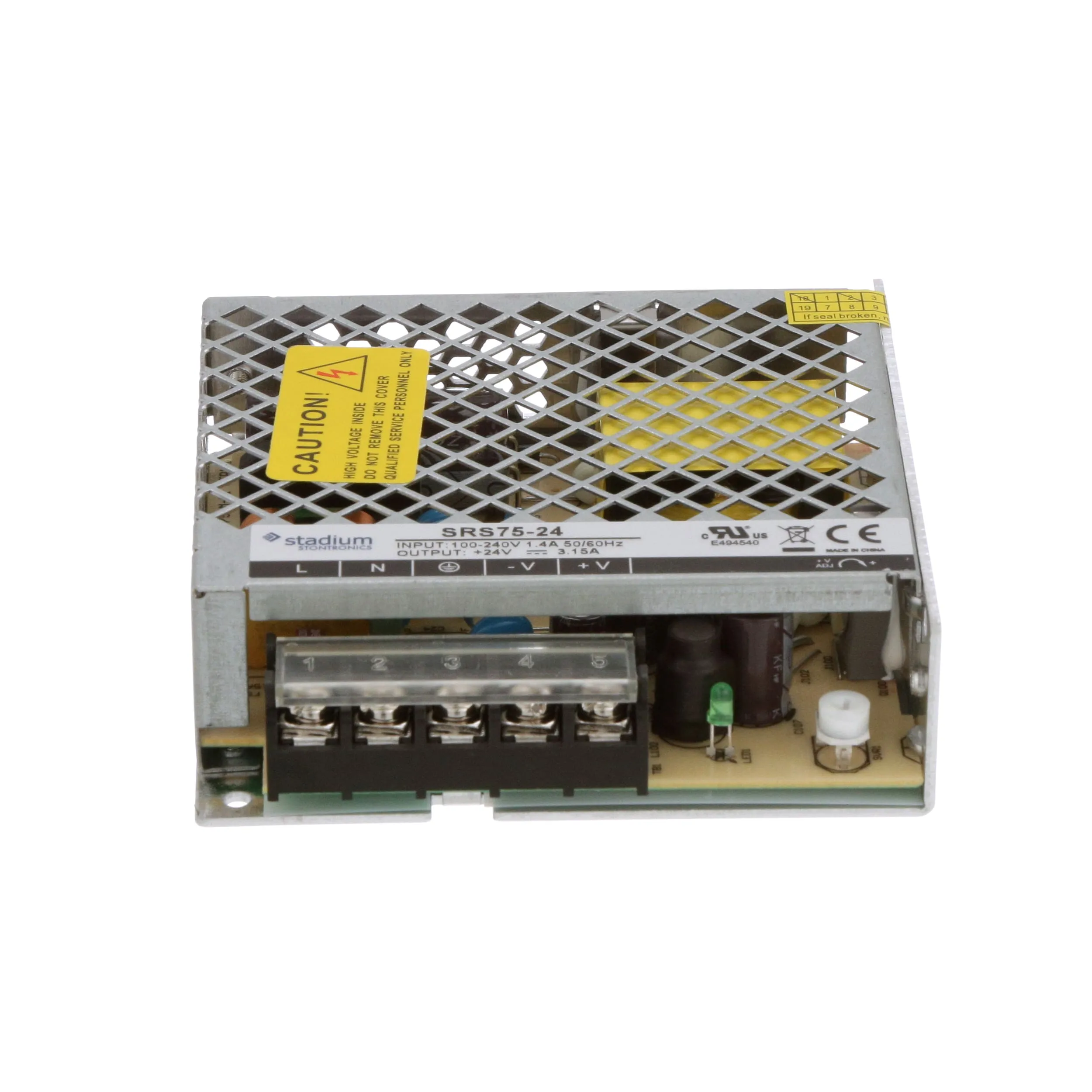

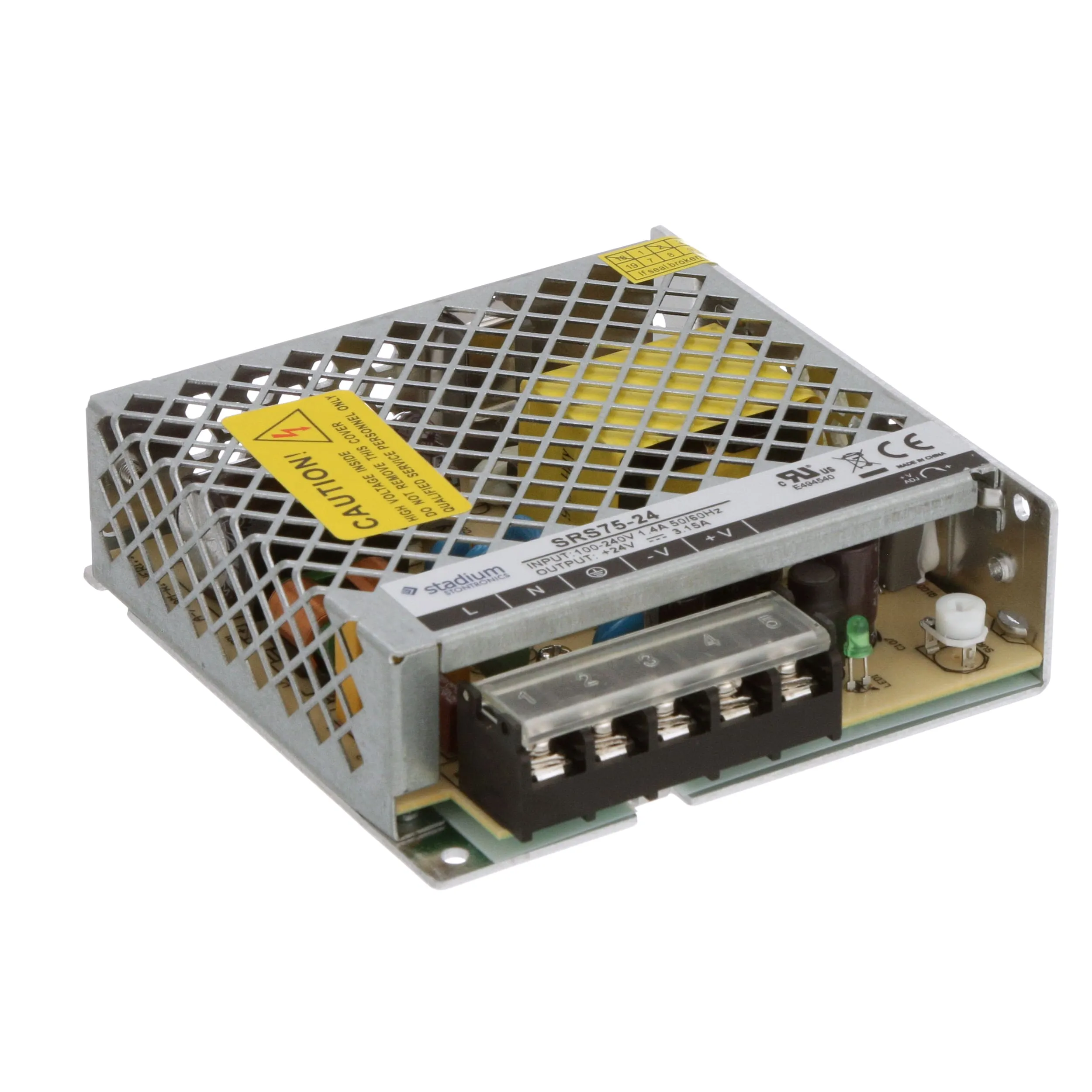

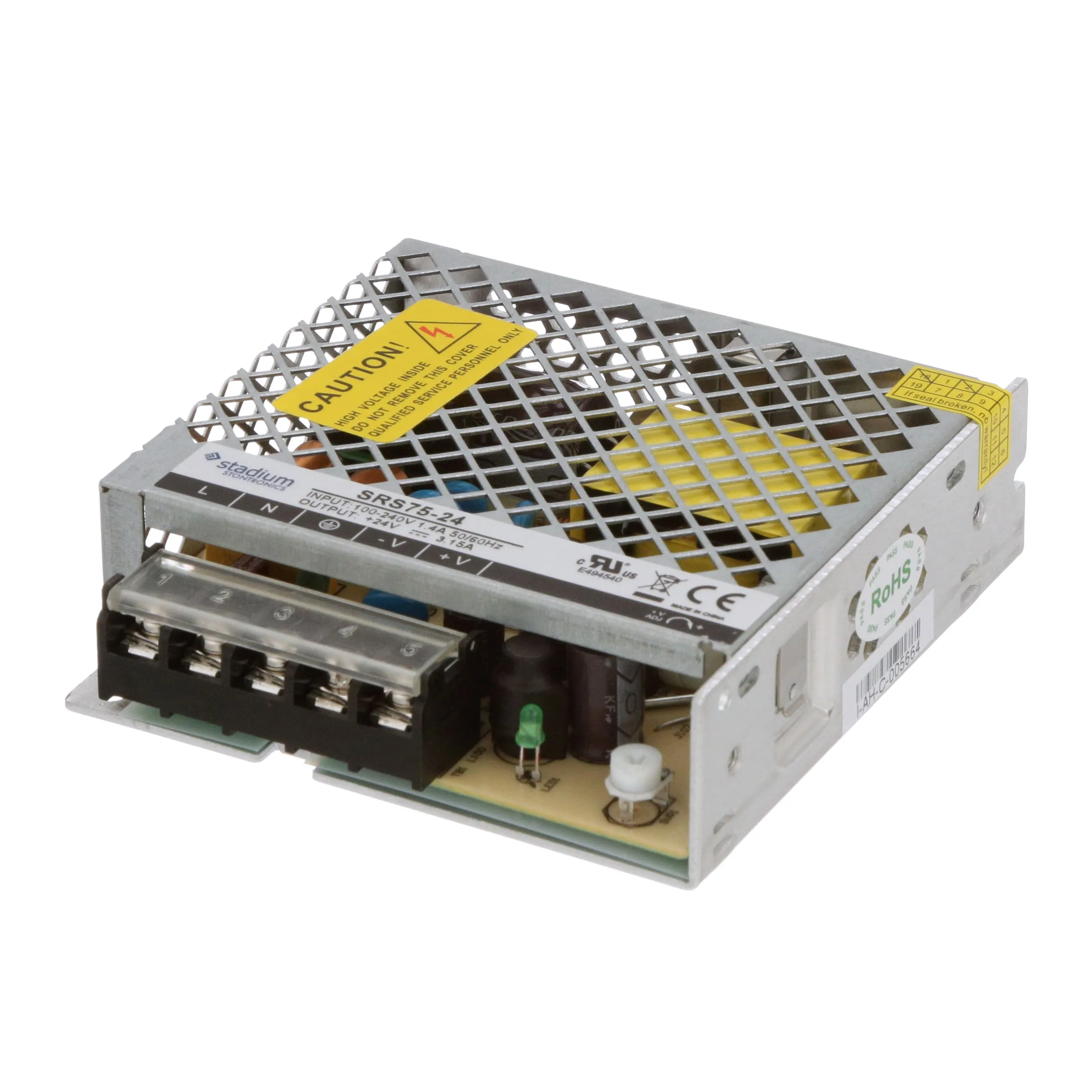

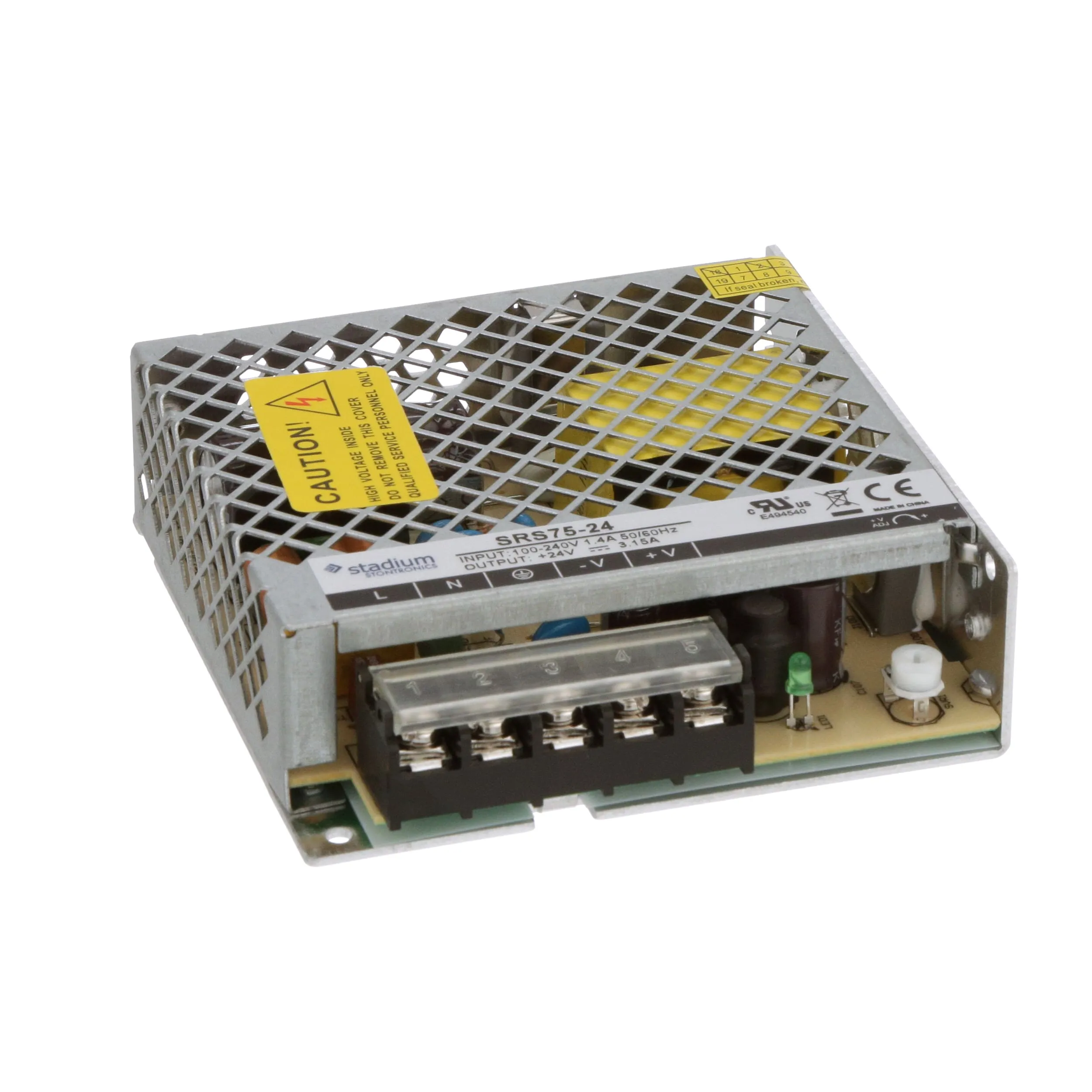

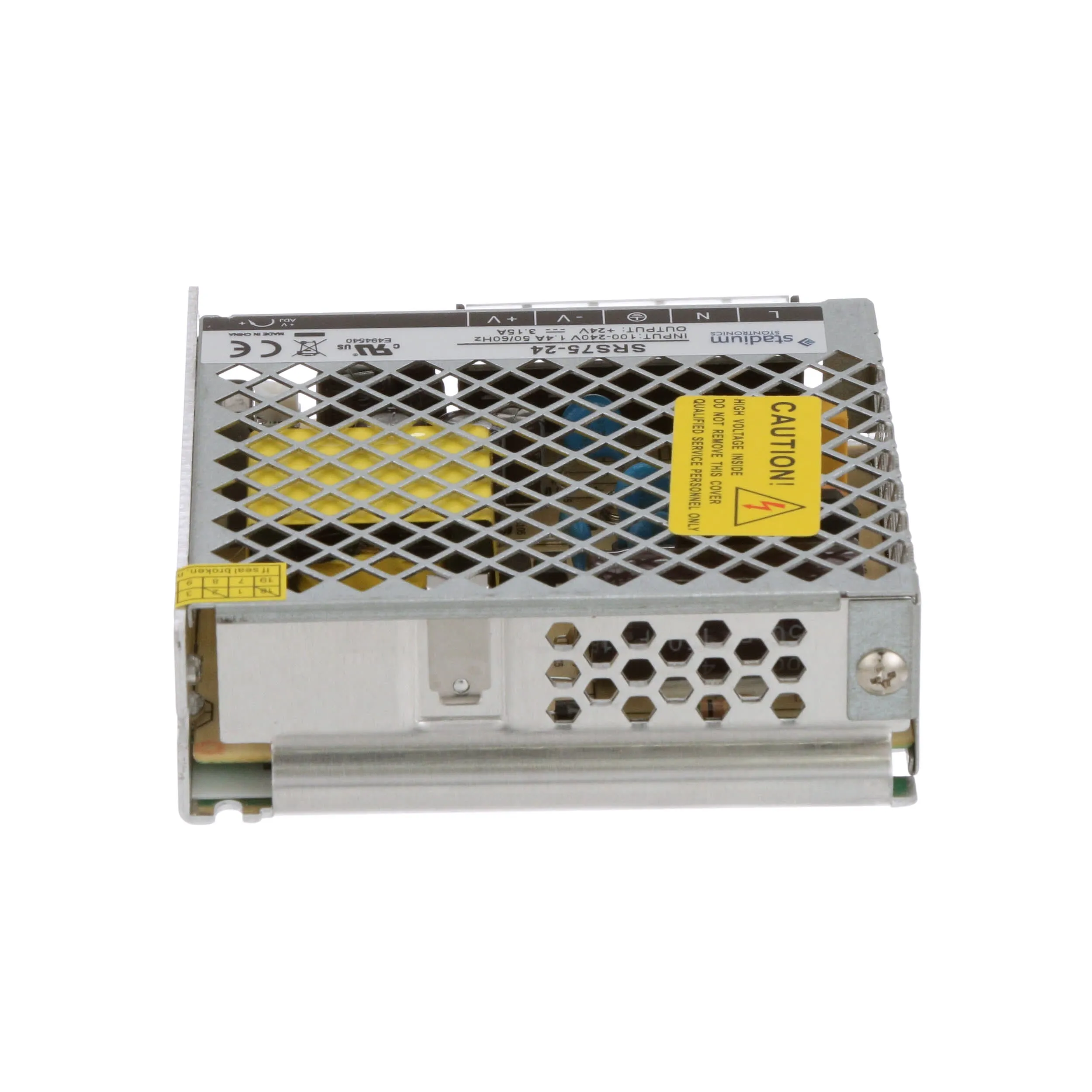

76.8 W Single Output Enclosed Power Supply
The 75 W enclosed power supply range from RS Pro has been specially designed to offer high efficiency, long life and high reliability for use in a variety of applications. This range comprises of 6 models with outputs of either 5 V, 12 V, 15 V, 24 V, 36 V or 48 V. Each model is RoHS, CE, UL approved and comes with a three year warranty.
