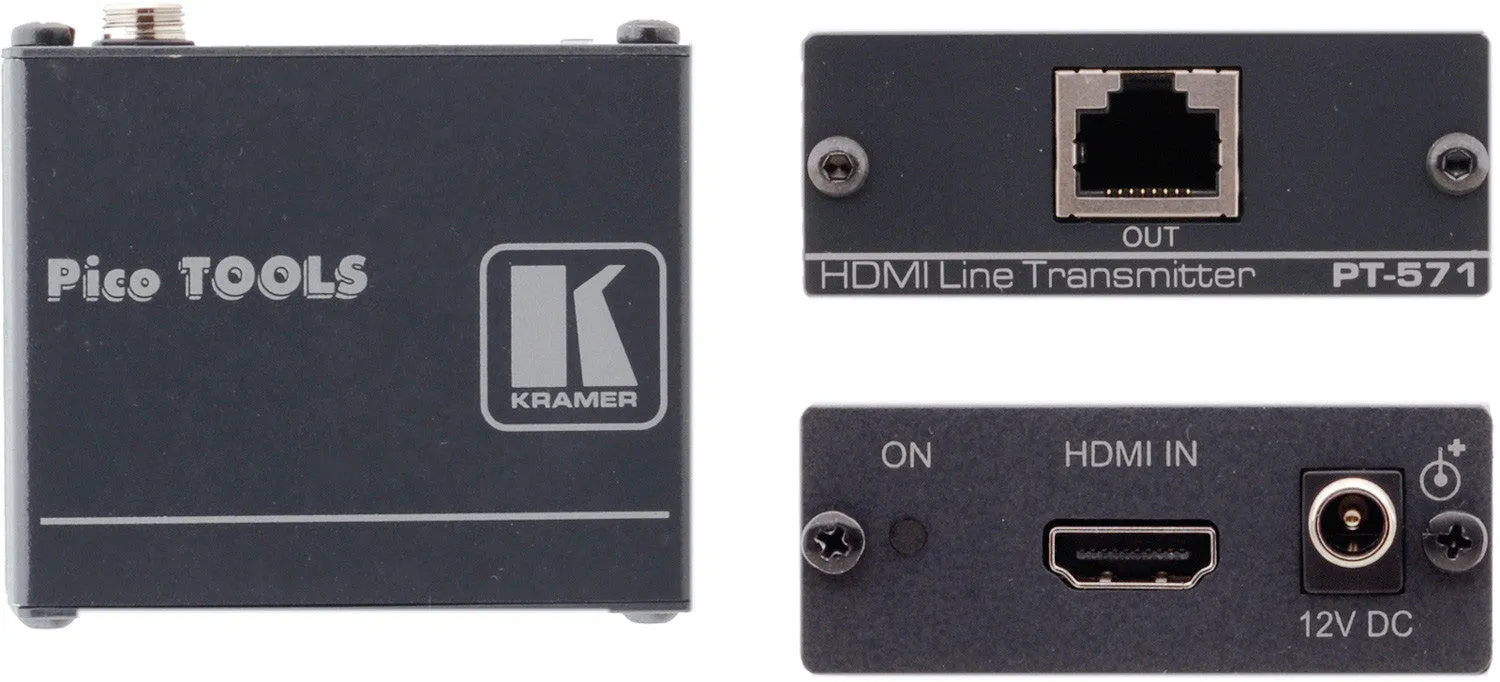

Kramer PT-571 HDMI Over Twisted Pair Transmitter

The PT-571 is a twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572 converts the twisted pair signal back to an HDMI signal.

• Max. Data Rate - 1.65Gbps.
• HDTV Compatible.
• HDCP & HDMI 1.3 Compliant.
• System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable.Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.
• Cable - For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.
• Passes EDID (Extended Display Identification Data).
• Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
• Power Connect™ System - A single connection to the transmitter powers the receiver.
• Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.
