Name: Allen & Heath ME-1 Personal Monitor Mixer
SKU: 2315237

Product Details ＋

DESCRIPTION

ME-1 is probably the most sophisticated personal monitor mixer on the market, giving precision control over up to 40 channels to satisfy the most demanding ears.

Musician Friendly

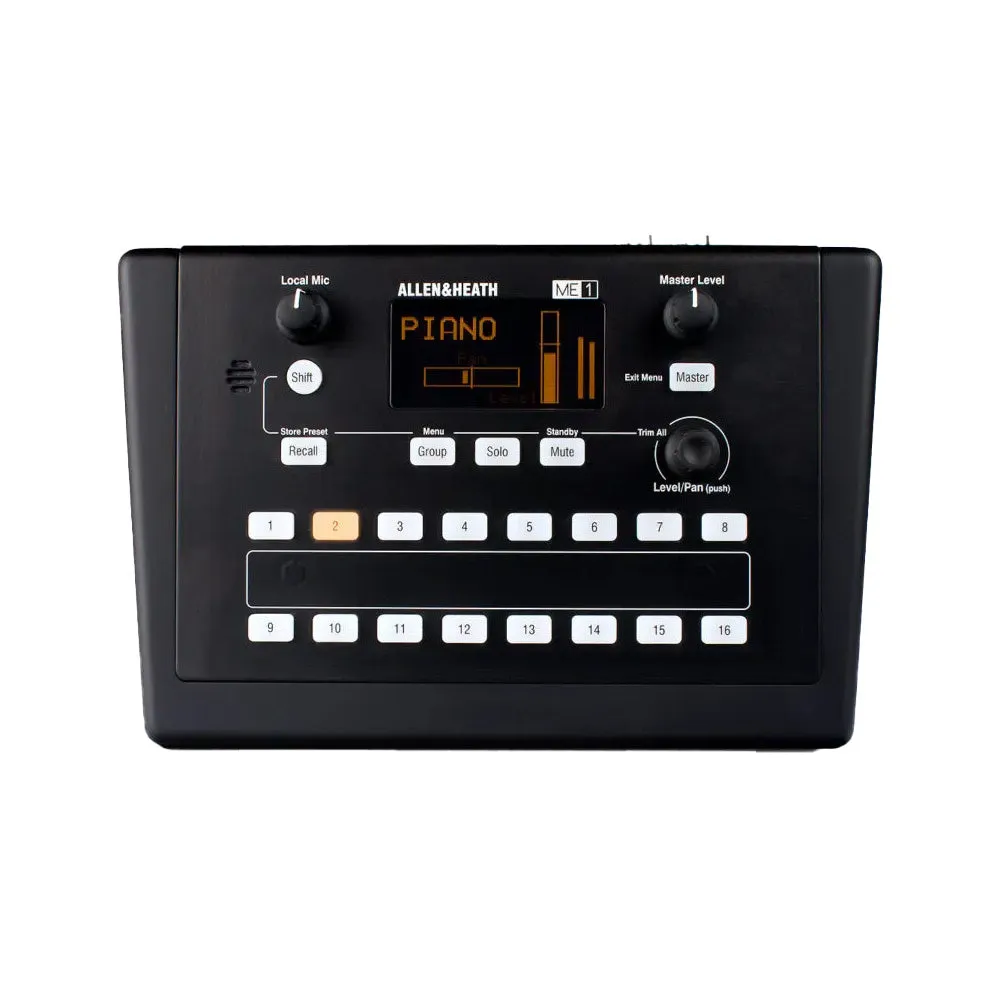

Powerful Yet Easy To Use

The uncluttered top panel makes control quick, easy and intuitive for the musician. Each key is assignable to a single mono or stereo source or to a group of channels, for instance an entire drumkit. ME-1s connected to a dLive, Avantis or SQ mixer automatically pick up names from the console, and custom names can also be displayed. Once the perfect mix has been crafted, it can be saved to one of the 16 onboard preset slots on the ME-1.

Sound Design

Powerful, Clear Sound
The ME-1 features ¼” and 3.5mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears.
Protect Your Ears
The integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.

Stage Ready

Neat and Tidy

The included headphone hanger and mic stand bracket ensure that everything the performer needs is within arms reach, and helps keep the stage neat and tidy. ME-1s can be powered via PoE to reduce onstage cabling further.

Audio First

Designed for Performers

The top-panel ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.

An easy to use Master 3-band EQ and Limiter protects performers ears and allows them to fine-tune the overall tone of their mix to compensate for differences in headphones.

FEATURES

40 Inputs With Level and Pan Control
Dimmable OLED Screen
16 Assignable Keys
3.5mm and 1/4” Headphone Outputs
Master 3-Band EQ and Limiter
Solo and Mute Keys
Aux Input for MP3 Players, Click Tracks etc
Built-in Signal Generator
Mains or PoE Powered
Daisy Chain or Use Standard PoE Ethernet Hubs
Mic Stand Bracket and Headphone Hanger Included

SPECIFICATIONS

Type: Personal Mixer
Compatibility: Native dLive, GLD, Qu, Aviom A-Net 16 (DiGiCo, Yamaha, Avid and others via ME-U hub)

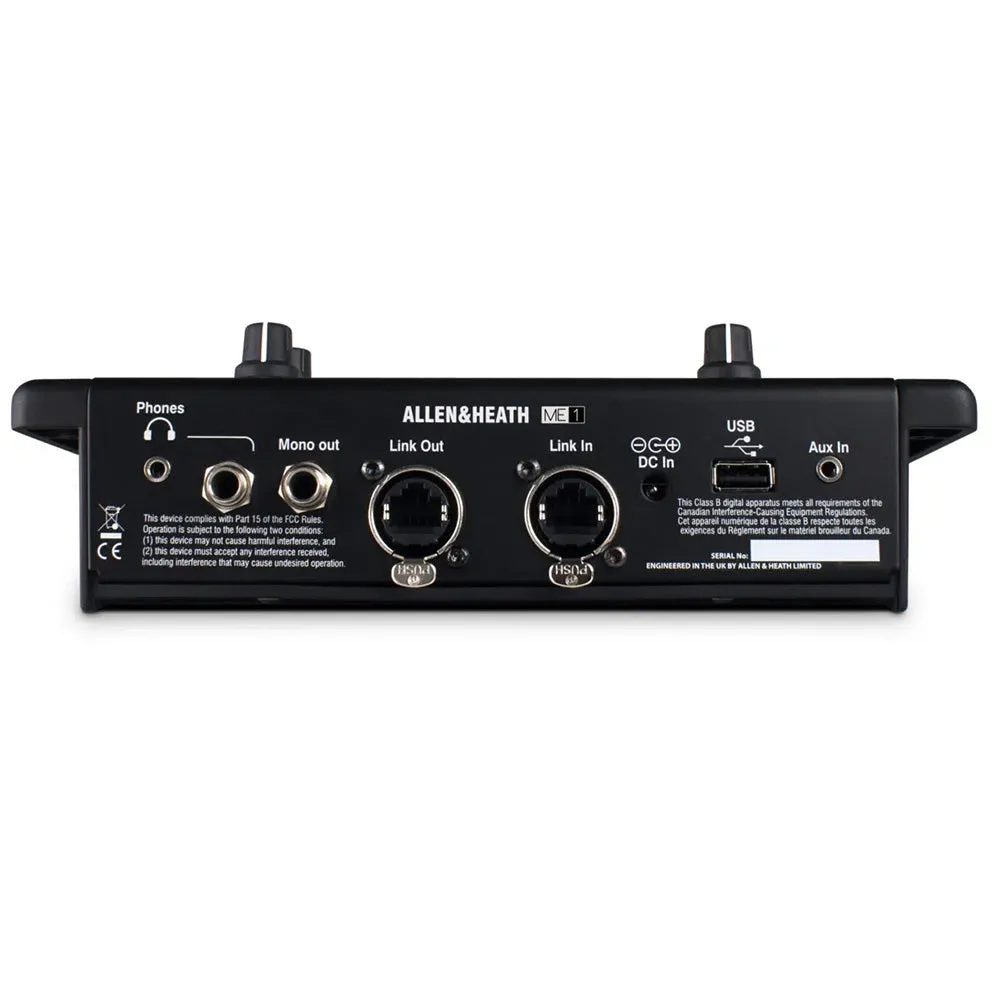

Number of Ports: 1 x Link In, 1 x Link Out
Connection Type: EtherCon
Input Channels: 40
Analog Inputs: 1 x 1/8" (aux in)
Analog Outputs: 1 x 1/4" TRS (mono)
Headphones: 1 x 1/4" TRS, 1 x 1/8" TRS
Data I/O: 1 x USB Type A
Form Factor: Desktop
Power Source: 12V DC power supply / PoE support
Height: 2.2"
Width: 9"
Depth: 6.3"
Weight: 2.4 lbs.
Manufacturer Part Number: AH-ME-1
