Product Details
＋

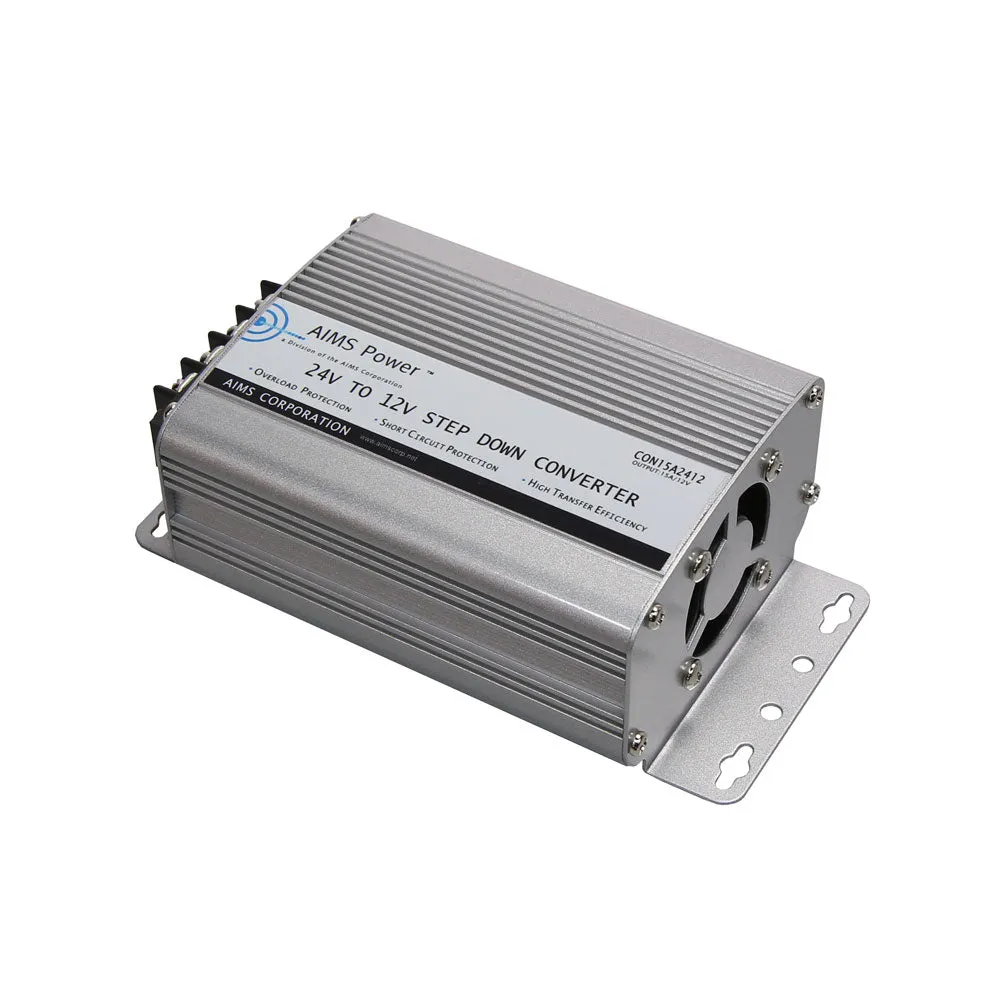

Experience the efficiency of our compact 15 Amp 24V to 12V DC-DC Converter, now available for purchase on Appliance Guys. Perfect for negative ground systems, this non-isolated converter delivers a highly regulated 12V output at 15 Amps from a 24V input. The green LED on the front panel indicates power status, while the aluminum case ensures optimal cooling. Equipped with over-temperature and overload protection, as well as DC input shutdown safeguards, this converter is designed for reliability. It comes with a 1-year warranty. Power your systems with confidence using our DC-DC Converter.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- Efficient Conversion: >90% conversion efficiency.
- Overload Protection: Safeguards against overcurrent.
- Temperature Regulation: Over-temperature protection up to 150°F.
- Robust Build: Aluminum case for optimal cooling.
- Compact Design: Dimensions of 5.91 x 3.39 x 2.2 inches.
- User-Friendly: Green LED confirms power on.
- Safety Features: Overvoltage, short circuit, and high/low battery shutdown.
- Tech Support: Free 1-year technical support.
- Warranty: 1-year parts and labor warranty.
- Certifications: CE EN61000-6-3:2007 A1:2011, CE EN61000-6-1:2007.
Specifications
Specifications
- DC Input Voltage: 20-37 Vdc.
- DC Output Voltage: 12.5-13.5 Vdc.
- Output Current: 15 Amps (Max: 18 Amps).
- Non-Isolated Design: Transformer-based.
- Low Battery Shutdown: 18 /- 1 V.
- High Battery Shutdown: >38Vdc.
- Input Overcurrent Protection: 10A Fuse.
- Input Polarity Protection: Fuse Protected.
- Short Protection: Yes (DC Output).
Dimensions & Weight
Dimensions & Weight
- Unit Weight: 0.91 lbs.
- Unit Size: 5.91 x 3.39 x 2.2 inches.
- Shipping Weight: 1 lbs.
