Description

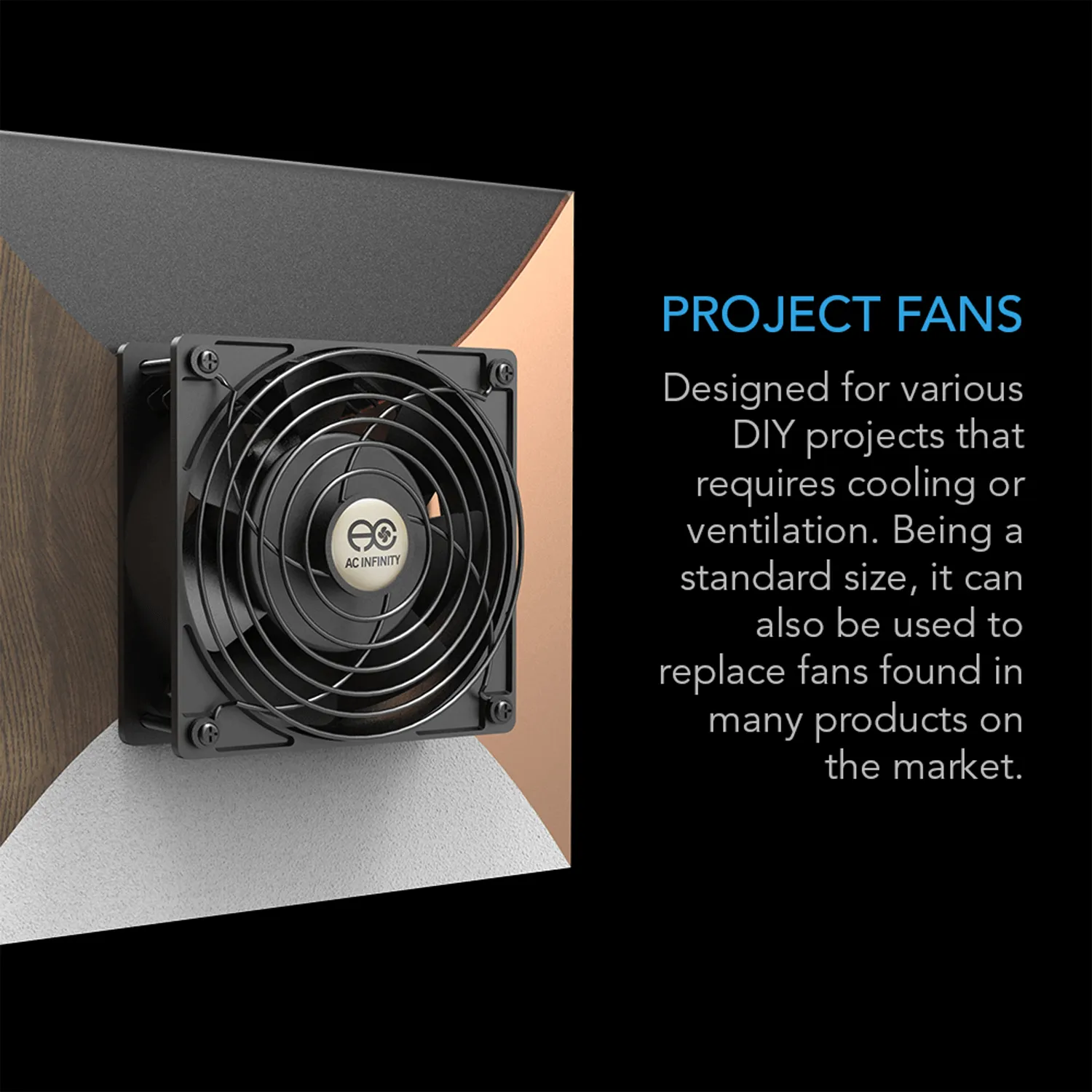

Designed for projects that require cooling or ventilation, or as a replacement fan for various products.

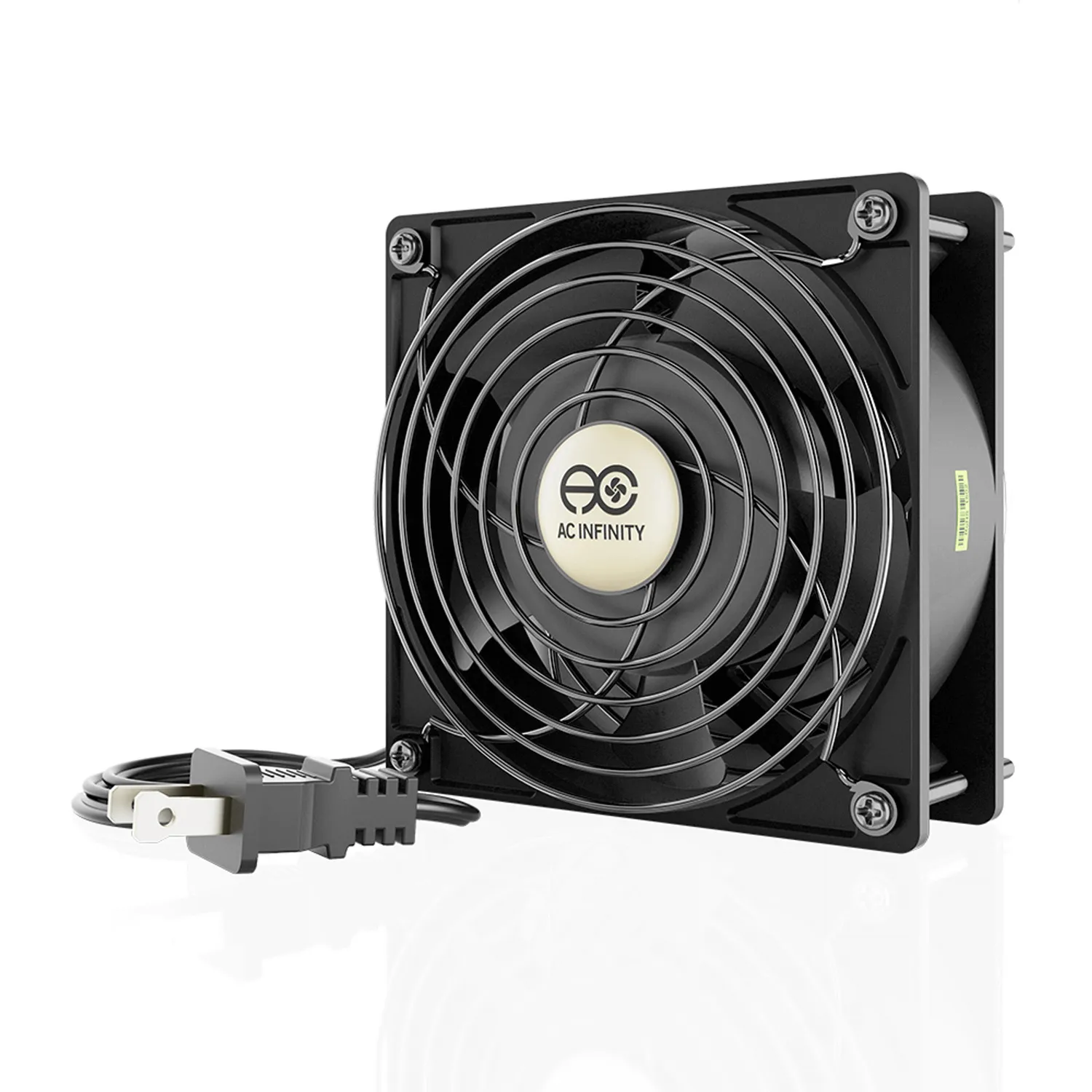

Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.

UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.

Low Speed: This model has a lower noise and airflow rating compared to high-speed models of the same size.

Size: 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 in.)

Voltage: 100 to 120V AC

Airflow: 62 CFM

Noise: 32 dBA

Speed: 1800 RPM

The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. It runs on 100 to 120V AC and includes everything needed to easily mount and power the fan through a wall outlet.

It comes with a 4-foot power cord that can be easily attached to the fan's metal terminals for wall outlet power. The plug cord can also be cut and converted into lead wires to connect to a wired AC power source.

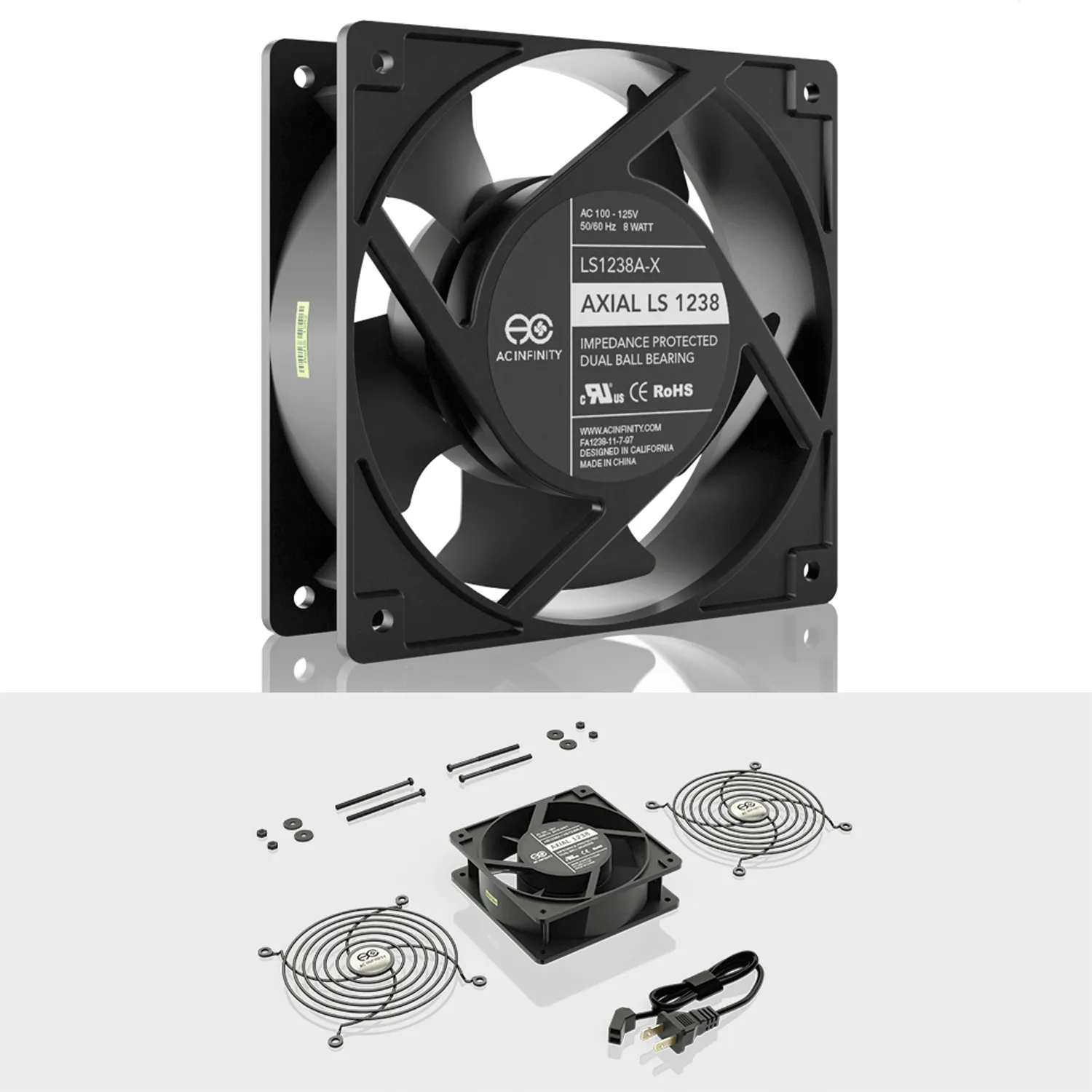

The kit also includes two 120 millimeter metal fan guards and a mounting screw set.

The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.

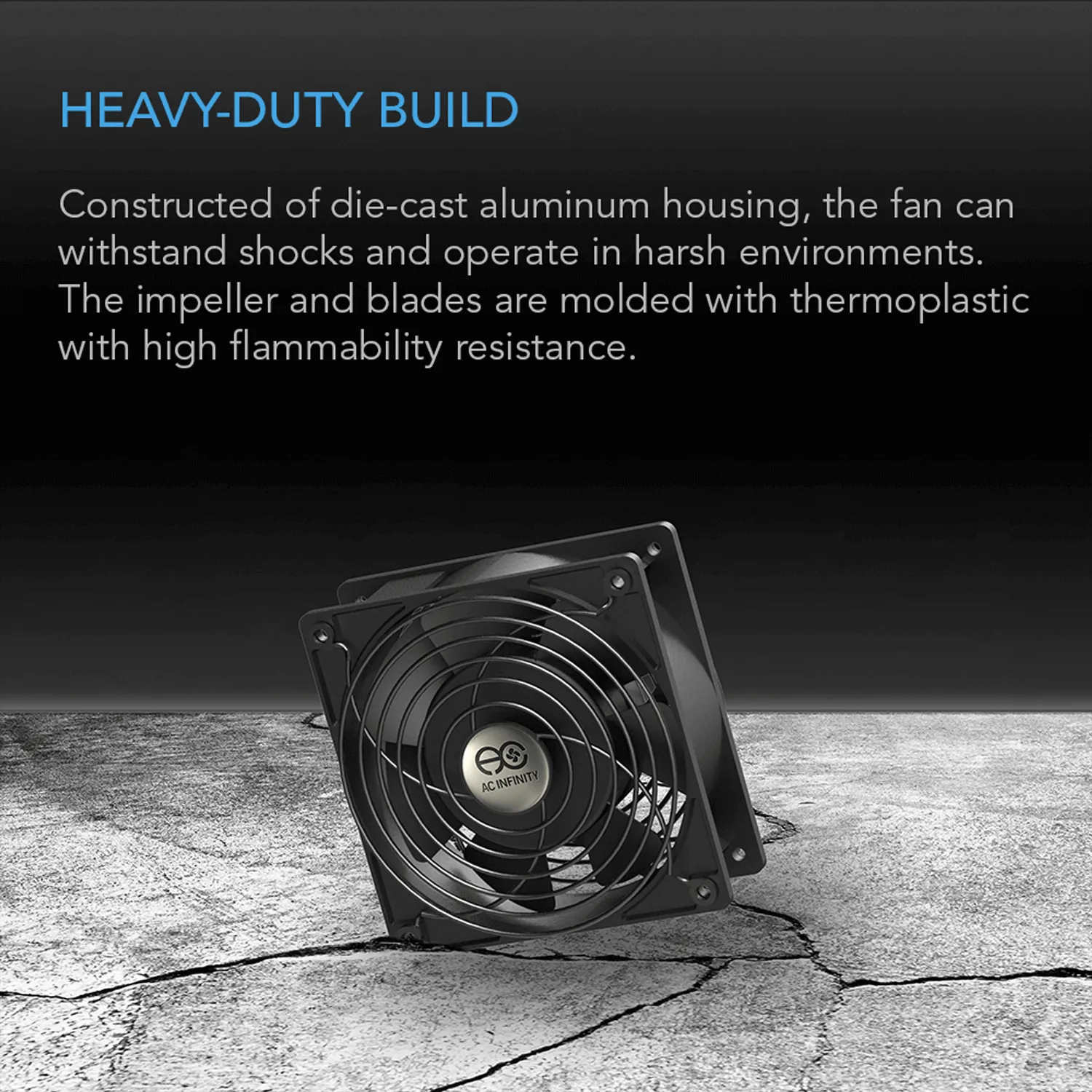

The fan's housing is constructed of die-cast aluminum painted black, making it suitable for harsh environments and able to withstand shocks.

Its impeller and blades are molded with thermoplastic, which has high flammability resistance.

Impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock.

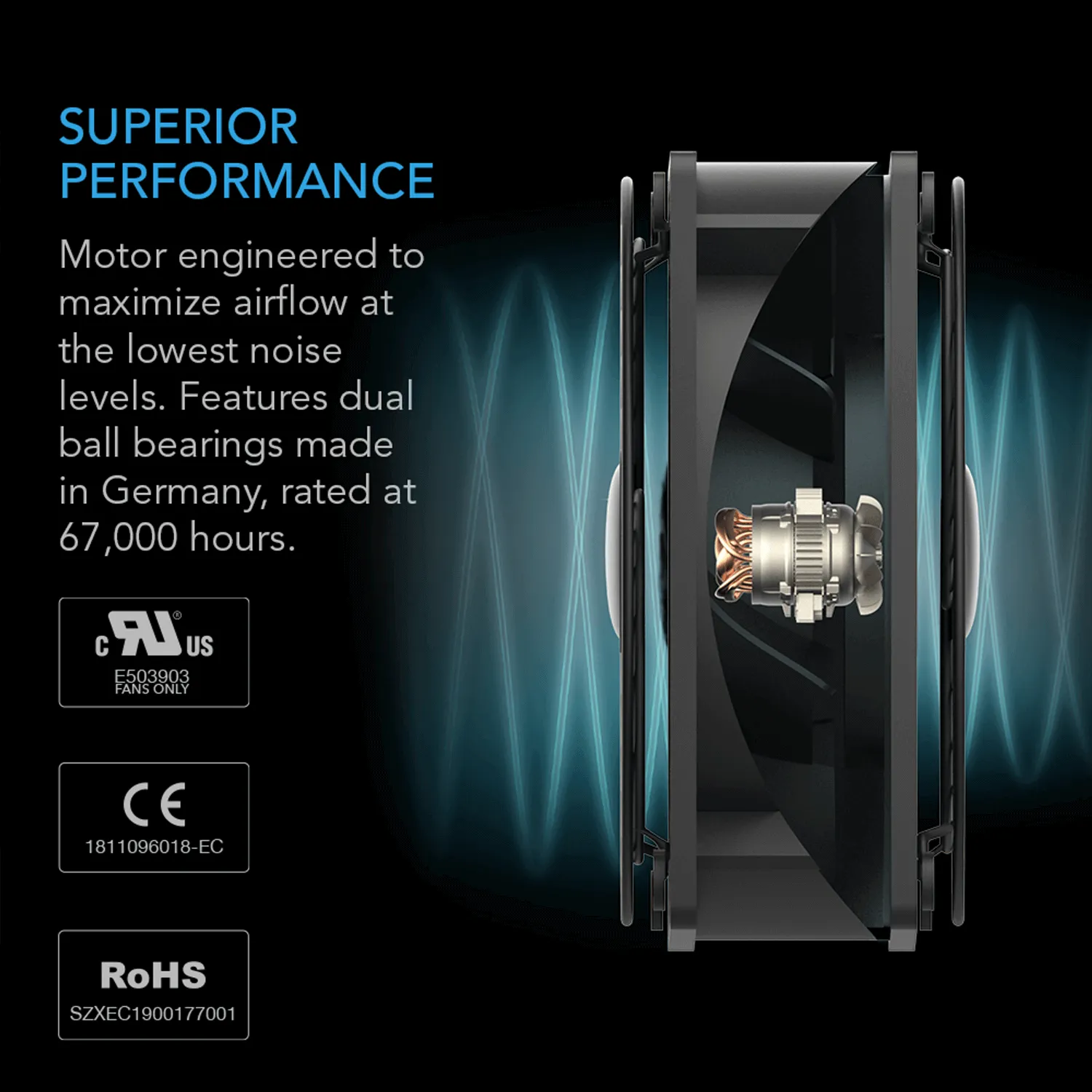

Containing long-life dual ball bearings, the fans can run continuously for 67,000 hours and be mounted in any direction.

This low-speed fan is suitable for applications that require a lower noise level and can accept a weaker airflow.

Popular uses include theater cabinets, wood stove heaters, room-to-room doorways, amplifiers, kegerators, and more.

Because this is a standard industrial size fan, it can be used to replace fans found in various electronics and machinery.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AXIAL LS1238

Product Model: LS1238A-X

UPC Code: 819137020542

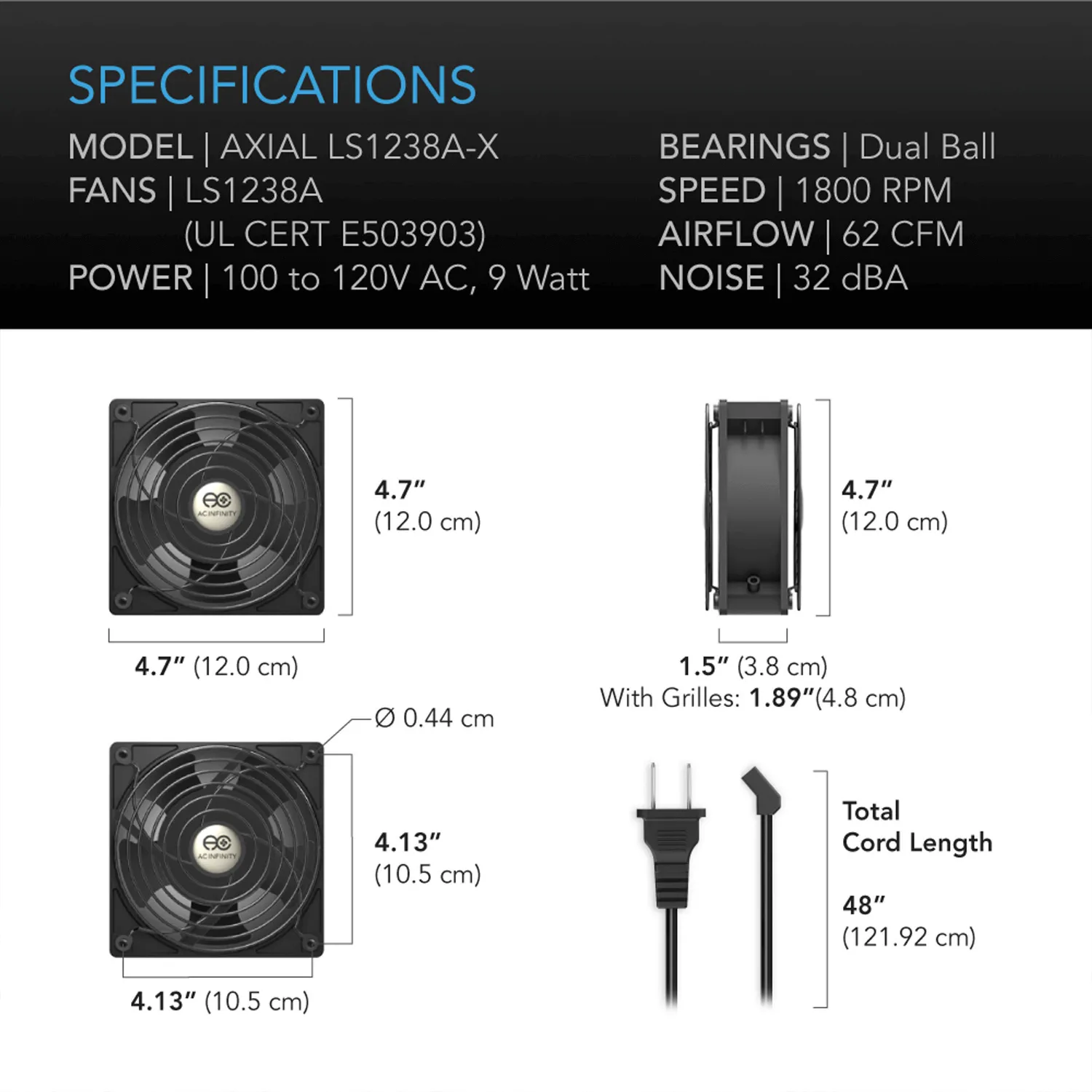

Product Dimensions

Total Dimensions: 4.7 x 4.7 x 1.5 in. (12.0 x 12.0 x 3.8 cm)

Hole to Hole Distance: 4.13 x 4.13 in. (10.5 x 10.5 cm)

Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)

Cord Length: 48 in. (4 feet)

Product Performance and Technical Specs

Fan Model: LS1238A

Total Airflow: 62 CFM

Total Noise: 32 dBA

Speed: 1800 RPM

Operating Voltage: 100 to 120V AC

Power: 9 W

Current: 0.1 A

Static Pressure: 2.0 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet
