Brand: 8TEN
Features:
- Replaces OEM Part Numbers: Compatible with Big Dog 784835, 784835K, Hustler 784835, 784835K
- Compatible with Models: Hustler/Excel FasTrak 44" - All Engines; Hustler / Excel FasTrak 48" - Model 928267, 928275, Hustler / Excel FasTrak 52" - All Engines, Hustler / Excel FasTrak 54" - Model 928291, 928502, Hustler / Excel FasTrak Super Duty 36" serial no. 0 to 07019999, Hustler / Excel FasTrak Super Duty 42" serial no. 0 to 07019999
- High-Performance Gen 3 8TEN PTO Clutch; 370 Degrees Auto Thermal Cutoff Preventing Clutch Damage
- Increased Blade Acceleration with Higher Initial Torque
- Anti High & Low Temperature bearing and encapsulated coils (-40 Degrees F to 370 Degrees F) for Consistent Performance
Publisher: Mishon

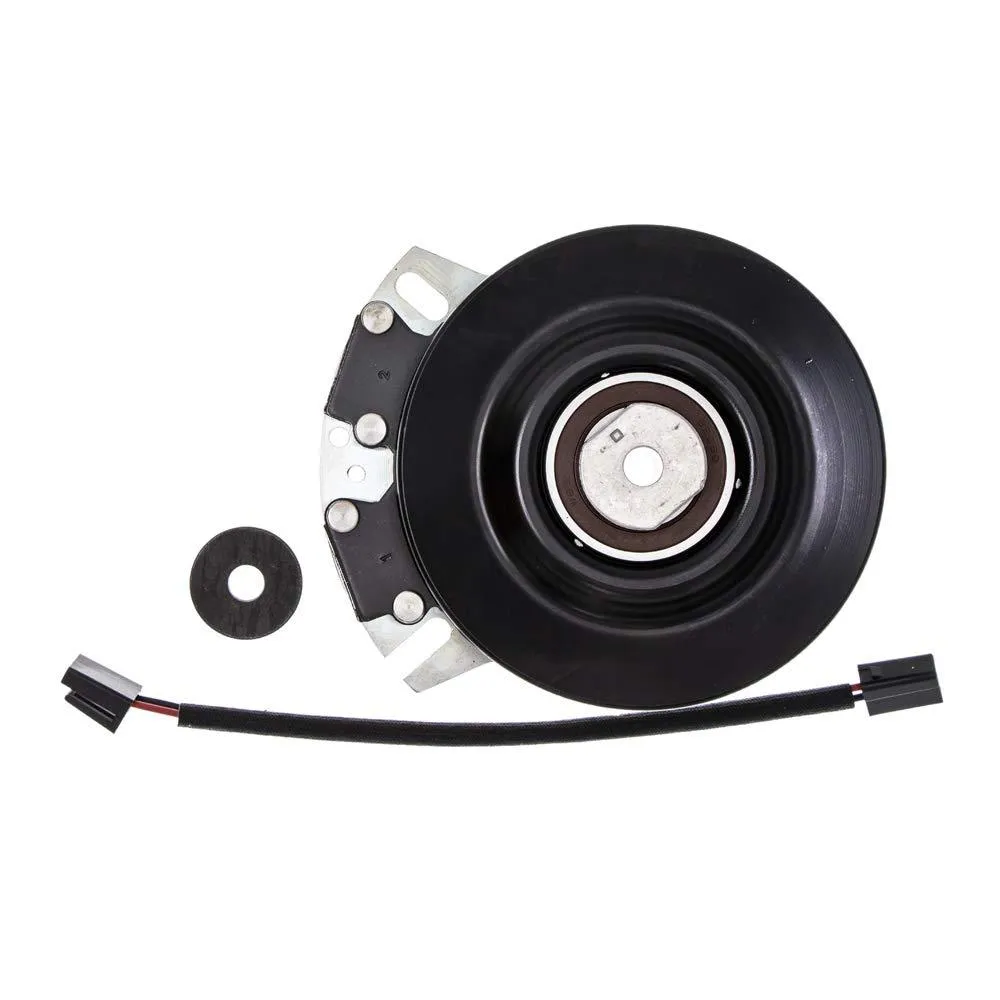

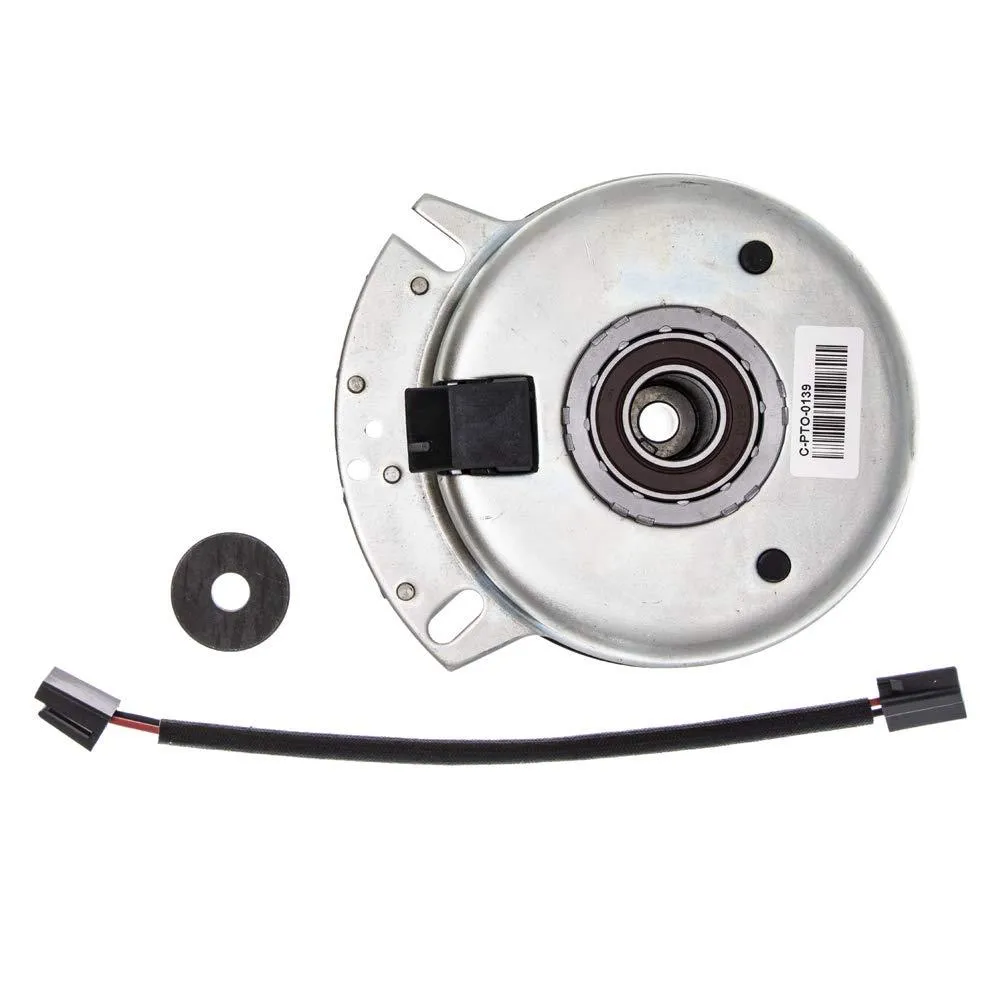

Details: A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of your machines performance and engages/disengages your mower deck blades. By purchasing a PTO clutch, you can keep your equipment running smoothly and the blades rotating without any major machine repairs. Quality and performance guaranteed!
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to 200F
Bearing Operating Temperatures: -40F to 350F
Coil Operating temperatures: -40F to 350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F
Unique Specs:
Torque: 180Nm (132ft-lb)
Resistance at 70F: 2.9 -0.1 (Ohms)
Current: 4.13 (Amps)
Available Bores: 1", 1-1/8"
Clutch Rotation: CW,CCW
Connection: Integral
Package Dimensions: 12.0 x 12.0 x 12.0 inches
