8FUN 36V 250W SWXK BAFANG FRONT ELECTRIC WHEEL HUB MOTOR 28” (700c)

Bafang 8 Fun “Panterra” E-Bike Brushless front wheel Motor

250 Watt Output

170 rpm

For Building with 28” (700c Wheels)

100mm OLD, 9.5mm approx axle size, so will fit standard fork drop-outs

36 spoke for use with 13G spokes

Polished alloy finish

For use with v type brakes

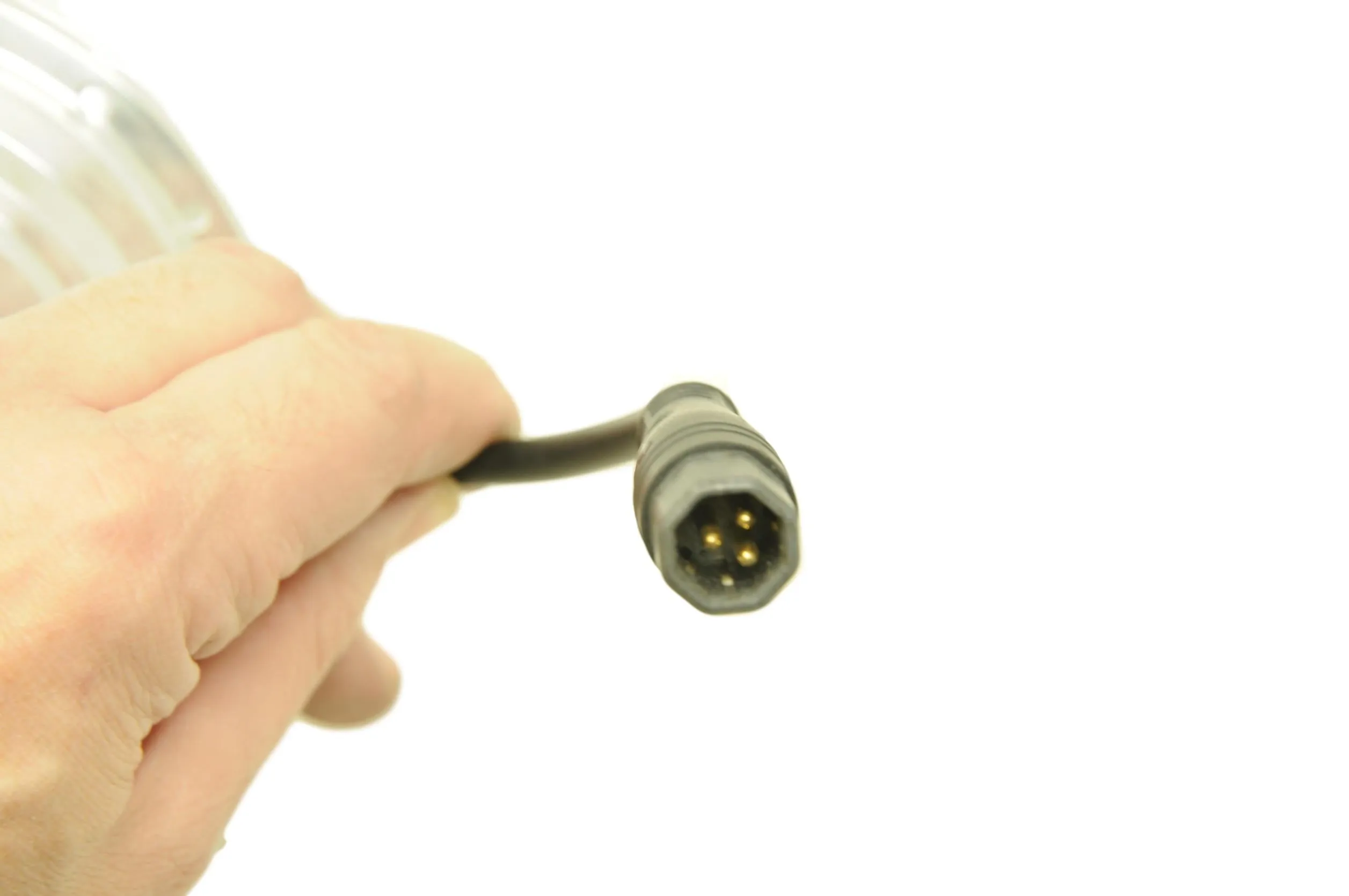

3 pin cable connection (200mm)

2.8kgs approx

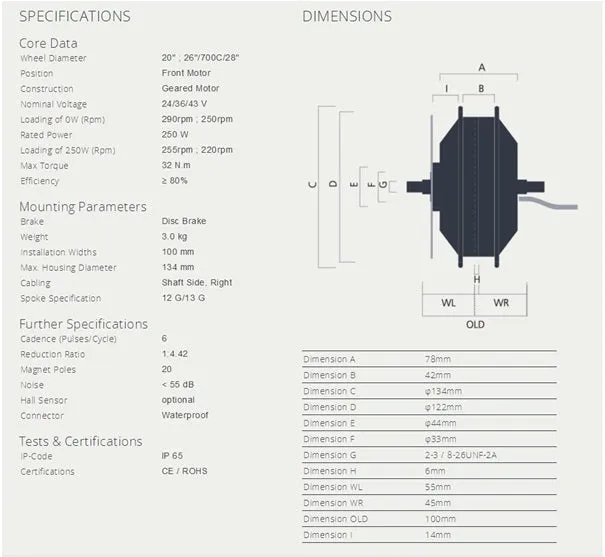

See Drawing for 8FUN HUB DIMENSIONS ONLY
